Air Orbital Sander MH-5098 Series
The MH-5098 air orbital sander is engineered for consistent surface finishing in automotive and industrial applications.
With a compact body, high rotational speed, and balanced air consumption, this pneumatic sander delivers smooth control, reduced vibration, and reliable output for daily professional use.
The “Big 3” Features
- Precision Finishing (Precision Orbit Options): Available in 5/32″, 3/16″, and 1/4″ orbit sizes to provide the perfect balance between aggressive material removal and ultra-fine finishing.
- Ultra-Lightweight & Ergonomic: Weighing only 1.5 lbs, this sander reduces operator fatigue during long hours of use in auto body shops or furniture manufacturing.
- Versatile Dust Collection: Choose from Non-Vacuum, Self-Generated Vacuum, or Central Vacuum models to keep your workspace clean and compliant with safety standards.
Specifications / Technical Data
| Model | Pad Size | Orbit Size | Speed | Vacuum Mode | Air Inlet (NPT) | Operating Pressure | Net Weight |
|---|---|---|---|---|---|---|---|
| MH-5098SL | 4″ (100mm) | 5/32″ (4mm) | 12,000rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52lb (0.69kg) |

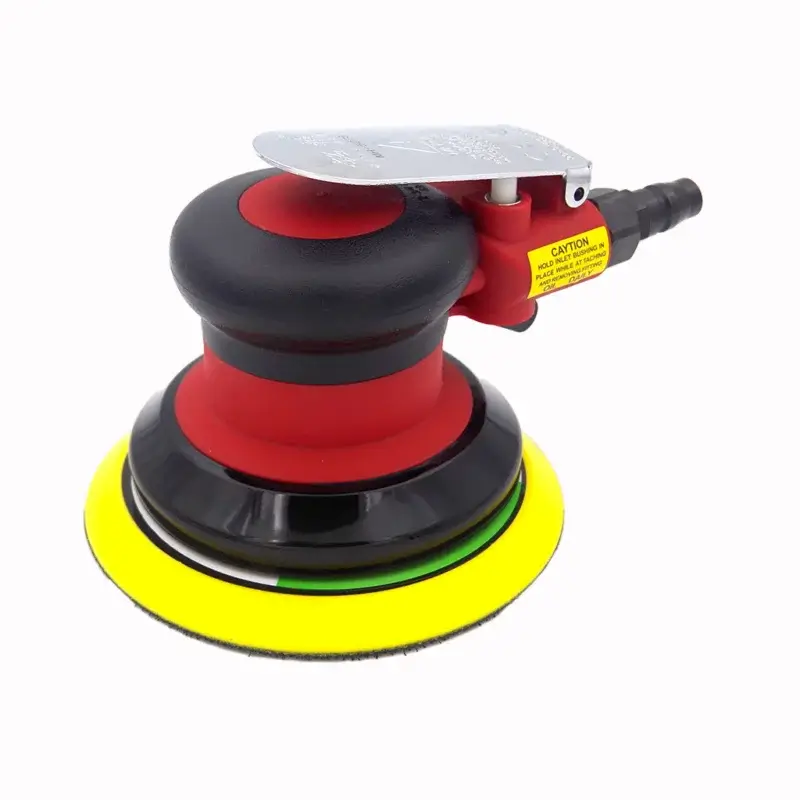

| MH-5098W | 5″ (125mm) | 3/16″ (5mm) | 12,000rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52lb (0.69kg) |

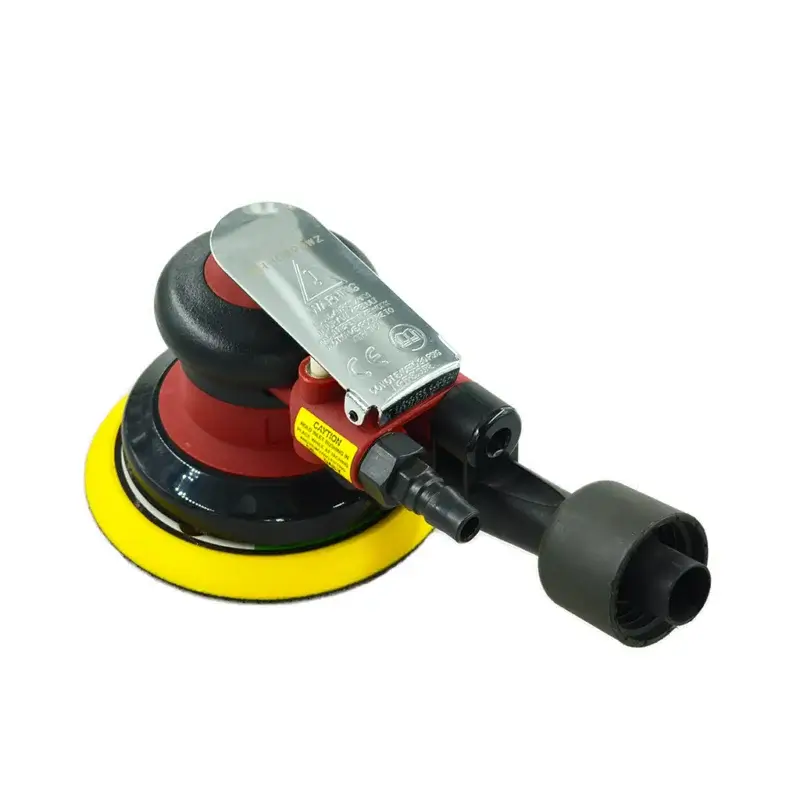

| MH-5098WZ | 5″ (125mm) | 3/16″ (5mm) | 12,000rpm | Self-Generated Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54lb (0.70kg) |

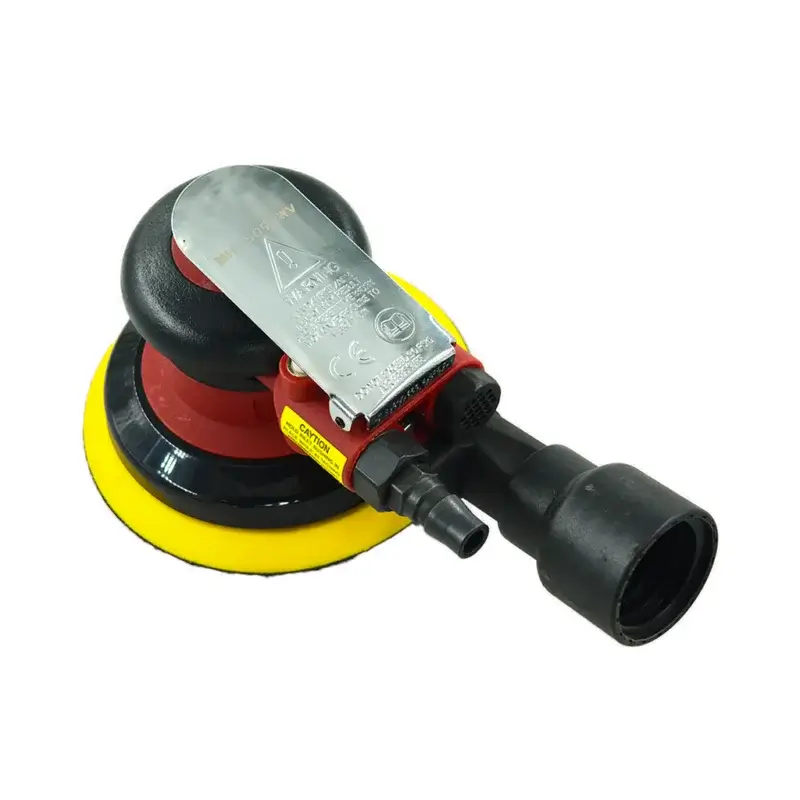

| MH-5098WV | 5″ (125mm) | 3/16″ (5mm) | 12,000rpm | Central Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54lb (0.70kg) |

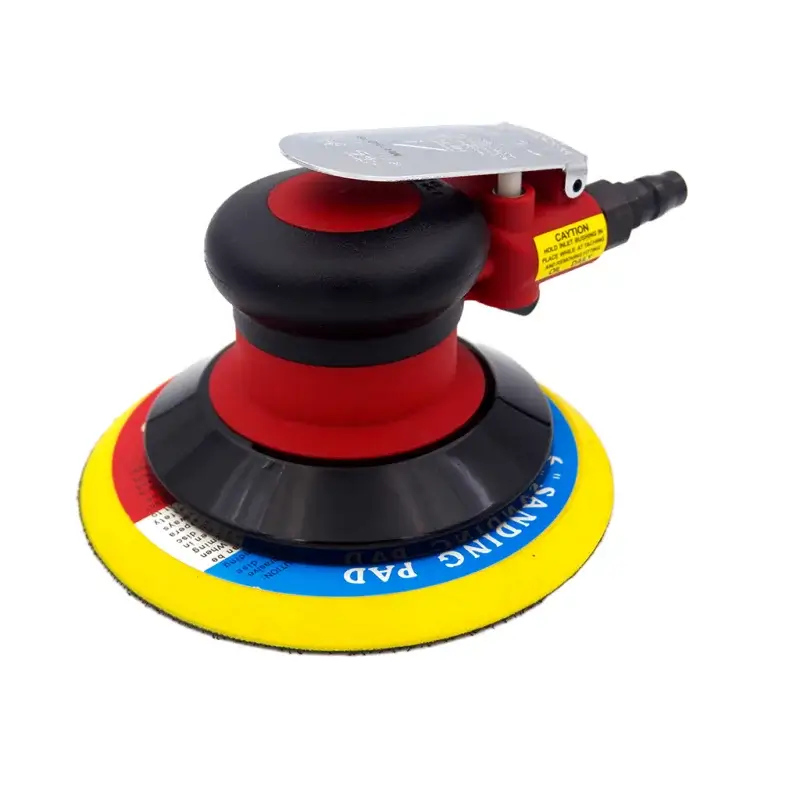

| MH-5098L | 6″ (150mm) | 1/4″ (6mm) | 12,000rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52lb (0.69kg) |

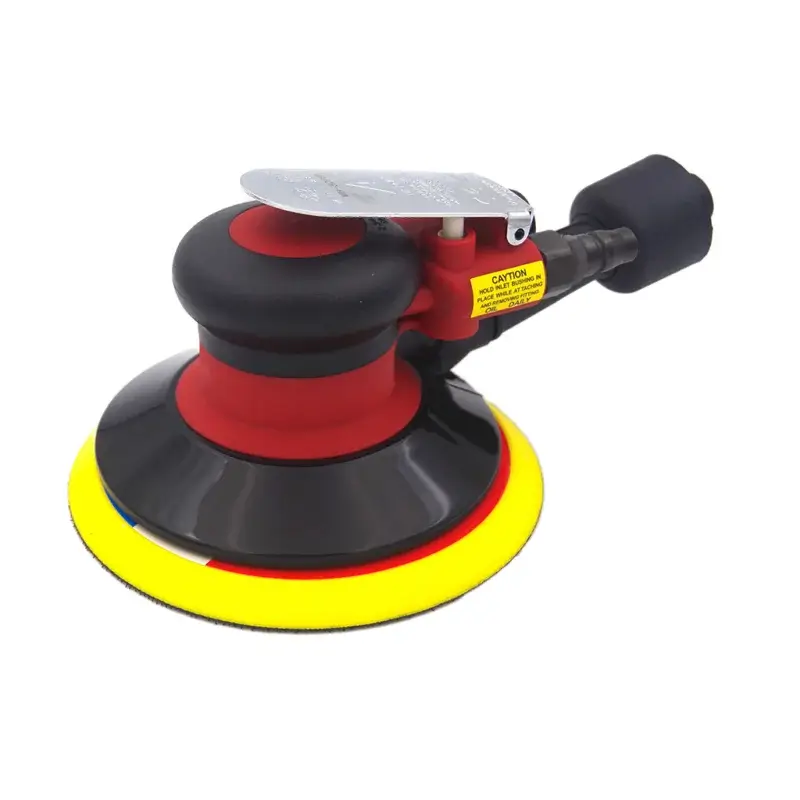

| MH-5098LZ | 6″ (150mm) | 1/4″ (6mm) | 12,000rpm | Self-Generated Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54lb (0.70kg) |

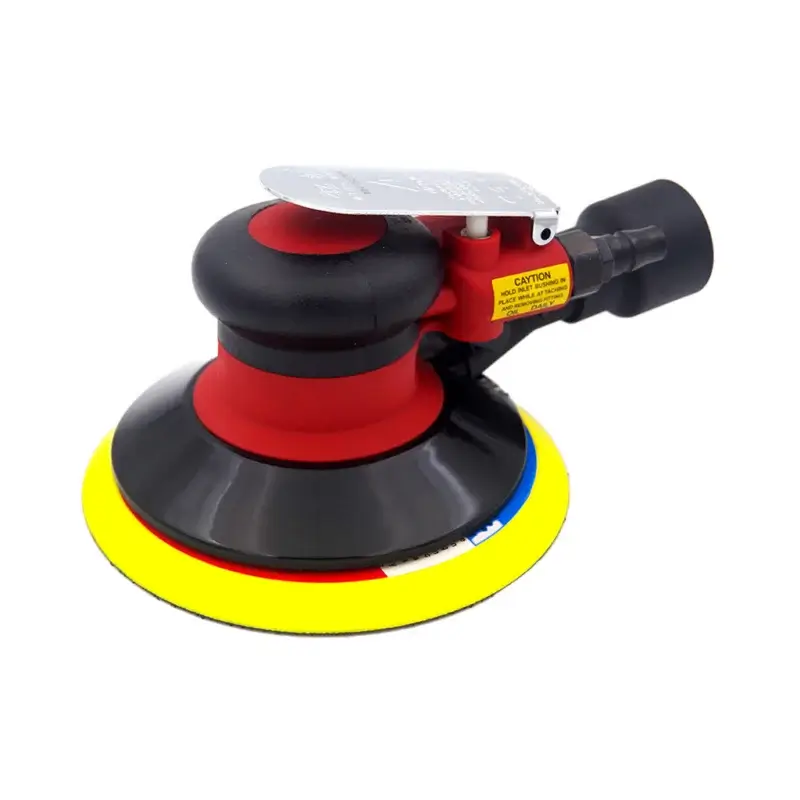

| MH-5098LV | 6″ (150mm) | 1/4″ (6mm) | 12,000rpm | Central Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54lb (0.70kg) |
Problem & Solution
Built for the Grind, Designed for the Hand
- Pain Point 1: Hand Fatigue & Numbness
- The Problem: Most air sanders vibrate excessively, causing “white finger” or numbness after an hour of use.
- Our Solution: The MH-5098 features a precision-balanced motor and internal dampening system. It delivers a smooth, low-vibration 12,000 RPM, allowing you to work longer with zero discomfort and better surface consistency.
- Pain Point 2: Dust Mess & Health Risks
- The Problem: Dust ruins paint jobs and gets into your lungs.
- Our Solution: Our Self-Generated Vacuum models create powerful suction without an external vacuum cleaner. If you have a shop system, our Central Vacuum port ensures 98% dust extraction, keeping your air clear and your finishes flawless.
- Pain Point 3: Tool Stalling & Short Lifespan
- The Problem: Tools stall under pressure or burn out due to dust entering the motor.
- Our Solution: Engineered with industrial-grade heat-treated steel components and a dust-proof bearing design. This sander maintains high torque even under heavy loads, ensuring years of daily professional use.
- Pain Point 4: Uneven Finishes / Swirl Marks
- The Problem: Single-mode sanders often leave unsightly swirl marks.
- Our Solution: The Random Orbital Dual-Action (DA) movement ensures the abrasive pad never follows the same path twice. This guarantees a swirl-free, mirror-like finish every single time.
How to Choose
- Which Orbit Size is right for you?
- 5/32″ (4mm): Best for fine sanding and prepping before paint.
- 3/16″ (5mm): The “All-Rounder” for general purpose sanding.
- 1/4″ (6mm): Aggressive cutting; best for fast material removal and heavy-duty tasks.
- Which Vacuum Mode do you need?
- Non-Vacuum: Best for outdoor use or well-ventilated open areas.
- Self-Generated: Best for mobile technicians (includes dust bag).
- Central Vacuum: Best for professional shops with an existing dust extraction system.
Comparison of without dust collection vs. with dust collection.
Comparison images of the chassis/rear section with three different dust collection methods (without dust collection vs. with dust collection hose connector).
Stop settling for uneven finishes and hand fatigue. The MH-5098 Series Professional Air Orbital Sander is engineered for the craftsman who demands perfection. Whether you are prepping an auto body panel or putting the final touch on a custom hardwood table, this pneumatic powerhouse delivers a consistent, swirl-free finish every time.
What sets the MH-5098 apart is its industrial-grade balance. While cheap sanders vibrate your hands to numbness, our precision-tuned motor operates at a smooth 12,000 RPM, significantly reducing operator fatigue during long shifts. We understand that every project has different needs, which is why we offer three specialized orbit sizes (5/32″, 3/16″, and 1/4″) and three dust-management configurations. From the portable Self-Generated Vacuum model to the high-efficiency Central Vacuum setup, we keep your workspace clean and your lungs safe.
Built with heat-treated steel components and dust-shielded bearings, the MH-5098 isn’t just a tool; it’s a long-term investment in your craft. Experience the blend of power, ergonomics, and precision. Upgrade to the MH-5098 today and feel the difference in every pass.
Why Professionals Choose the MH-5098 Series
| No More “Numb Hands” Features an advanced dampening system that cancels out high-frequency vibration, allowing for hours of comfortable use. |
Swirl-Free Results The Random Orbital (Dual Action) motion ensures the abrasive never tracks the same path twice, preventing unsightly swirl marks. |
| Breathe Cleaner Air Our vacuum-ready models (Self-Generated or Central) capture up to 98% of airborne dust at the source. |
Heavy-Duty Durability Built with industrial-grade steel internals and dust-proof bearings to survive the toughest shop environments. |
Frequently Asked Questions
What is the recommended air pressure?
We recommend 90 PSI for optimal performance and tool life.
How do I maintain the tool?
Add 2-3 drops of air tool oil into the air inlet before each use to keep the motor lubricated.
Which vacuum model should I choose?
Choose “Self-Generated” if you need portability (includes dust bag); choose “Central Vacuum” if you are connecting to a professional shop vacuum system.
Does it include the backing pad?
Yes, every MH-5098 comes with a high-quality, balanced hook-and-loop backing pad pre-installed.
Explore the large-size, high-efficiency surface stain removal sander, MH-5098 6 Inch Air Orbital Sander
