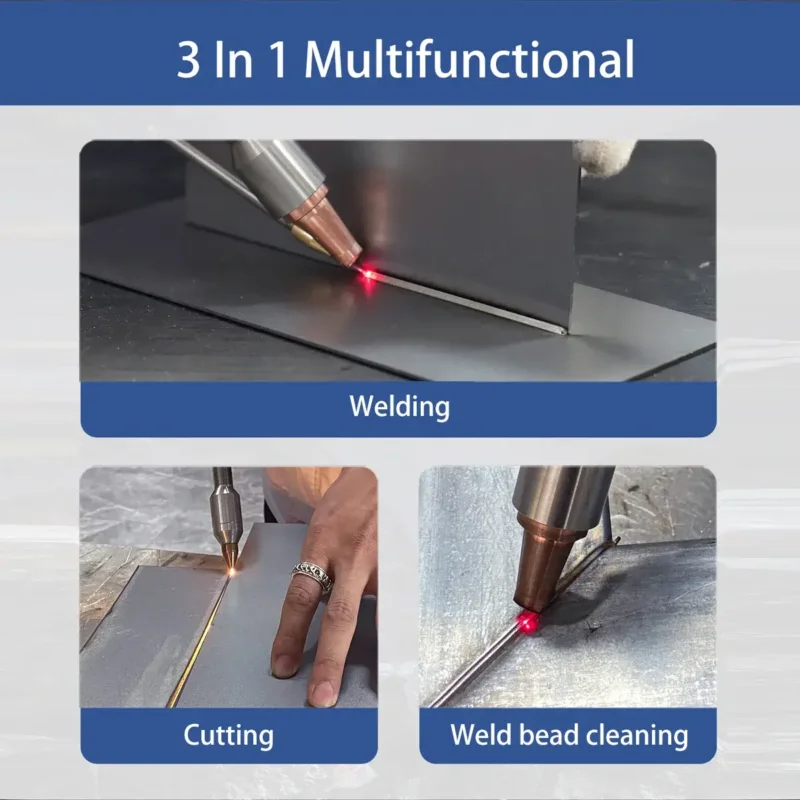

Additional functions: cutting, rust removal and cleaning 4 in 1. And welding is the main function.
Features
Low consumables, long lifespan, stable technology, and lifetime after-sales service.
Expandable
It can be configured with a robotic arm or CNC welding machine, and standard handheld heads can be replaced to meet various welding needs.
Cost Savings
By increasing speed, reducing manual skill requirements, and reducing post-weld grinding and polishing, welding speeds are 3-10 times faster than traditional welding, eliminating the need for 3-5 welders per machine. Learning to master the skill set takes only half a day, requiring no specialized skills. The automatic wire feed system ensures smooth and even welds.
Minimal Hot Zone Impact
Laser welding has a concentrated hot zone, resulting in zero workpiece deformation, scar-free welds, and strong welds.
Environmentally Friendly and Safe
Traditional welding machines generate significant environmental and worker health hazards due to flying dust and harmful gases. Laser welding machines pose almost no environmental risk.
A full set of professional welding nozzles
Meets the needs of tailored welding, fillet welding, lap welding, and other welding processes.
Eouipment Features

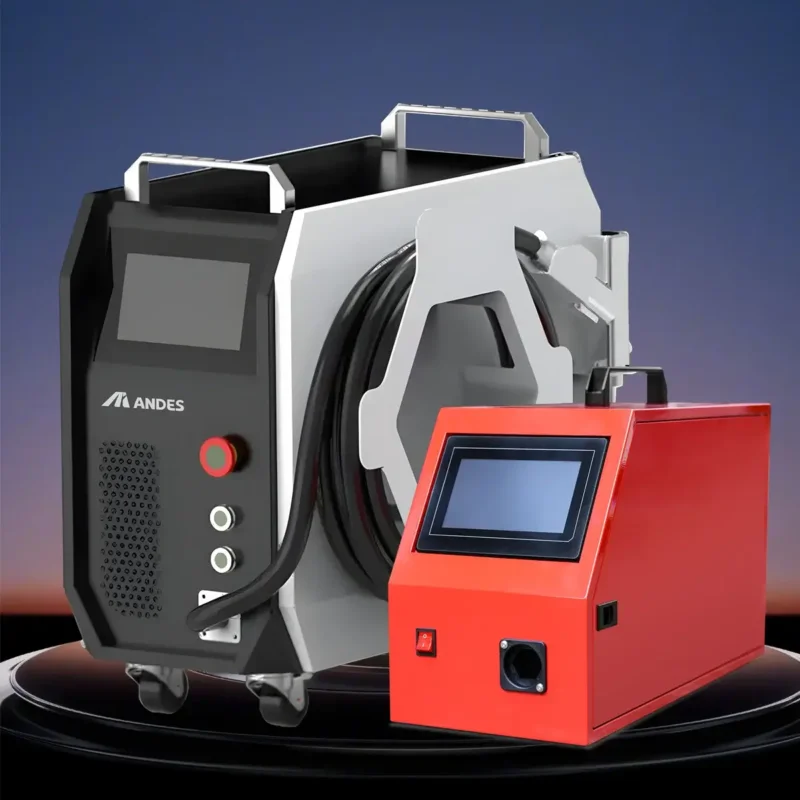

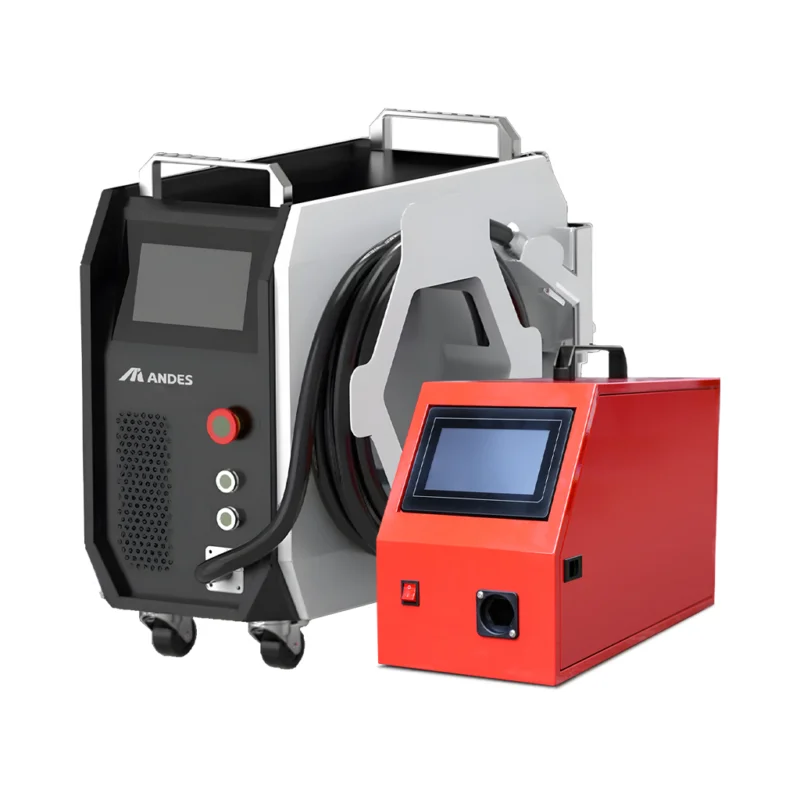

This air-cooled handheld laser welder features an advanced forced air cooling system and phase-change heat sink to ensure stable laser output power. The fan speed is intelligently variable based on the cooling plate temperature, and the mainboard includes a program to control this variable speed. Using high-temperature resistant chip technology, it supports extended welding cycles. Compared to traditional arc welders, it offers higher welding efficiency, eliminates the need for specialized welders, and reduces labor costs.
- Brand-new design, compact size, and lightweight at only 38kg, making it convenient for outdoor work.
- ABR technology, featuring superior anti-reflection technology, allows for easy welding of highly reflective materials.
- Our independently developed handheld welding torch is lightweight, ensuring fatigue-free welding.
- An industrial-grade LED touchscreen allows for easy control of power settings, mode selection, and fault indication.
Suitable For Industry
| Laser power (Model) | 700 W (ADS-F7) | 1300 W (ADS-F12A) | 1700 W (ADS-F16) | 2000 W (ADS-F20) |
|---|---|---|---|---|

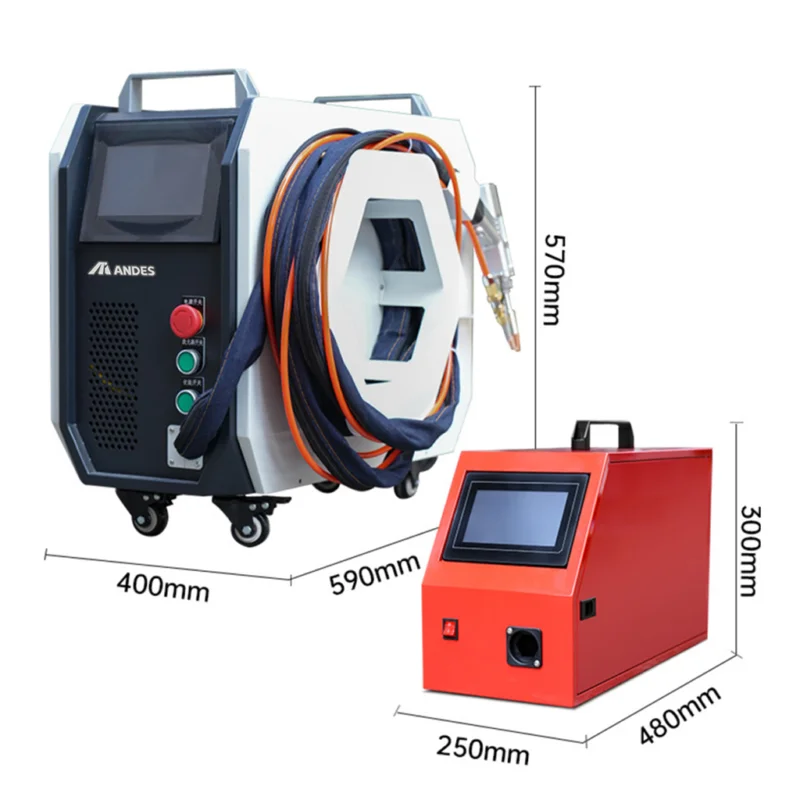

| Size (mm) | 320 x 580 x 570 | 320 x 580 x 570 | 320 x 580 x 570 | 370 x 620 x 600 |
| Weight (Kg) | 40 | 40 | 40 | 45 |
| Fiber length (M) | 10 (Standard) | 10 (Standard) | 10 (Standard) | 10 (Standard) |
| Weldable thickness | 0.4 – 2.0 (mm) | 0.4 – 3.0 (mm) | 0.4 – 4.0 (mm) | 0.4 – 5.0 (mm) |
| Cooling method | Air cooling | Air cooling | Air cooling | Air cooling |
| Operating voltage | 220 V AC | 220 V AC | 220 V AC | 220 V AC |
| Power frequency | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ | 50 / 60 HZ |
| Wire diameter (mm) | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6 |
| Working Mode | Continuous / Pulsed | Continuous / Pulsed | Continuous / Pulsed | Continuous / Pulsed |
| Laser swing amplitude | 0 – 4 (mm) | 0 – 4 (mm) | 0 – 4 (mm) | 0 – 4 (mm) |
| Welding gun weight | 680 g | 680 g | 680 g | 680 g |
| Shielding gas | Argon / Nitrogen | Argon / Nitrogen | Argon / Nitrogen | Argon / Nitrogen |
| Output power range | 1 % – 100 % | 1 % – 100 % | 1 % – 100 % | 1 % – 100 % |
| Applicable materials | Stainless Steel / Carbon Steel / Aluminum / Cold Galvanized / Titanium Alloy | |||
| Handheld laser welding machine | Specification | Quantity(Set) |
|---|---|---|
| Laser Generator | 700W/1300W/1700W/2000W | 1 |
| Handheld welding gun | Single swing welding gun | 1 |
| Transmission fiber optic | 10m | 1 |
| Water chiller | 1500W/2000W/3000W | 1 |
| Automatic wire feeder | custom-made | 1 |
| Main control board | XL V1.0 | 1 |
| Laser protective lenses | 18×2 or custom-made | 6 |
| Laser copper nozzle | custom-made | 6 |
| Wire feeding tube | 4m | 1 |
Product Details
Handheld Welding Torch
Control System
Universal Wheel
Sheet metal
45 Degree tilt design
Fixed angle wire feeding to prevent welding wire, Scraping due to deviation during delivery.
Wire feeder core motor
High speed without Catton, Stable operation and long-term work without fever.
Wire feed wheel standard
Low density aluminum alloy suitable for U whee, Stainless steel high strength applicable V wheel.
Simple operation oflaser welding machine
Complex operation oftraditional welding machine
Welding speed of 2 meters/minute
Inefficient traditional welder
High Welding Strength
Enhanced Efficiency
Welding Process
Beautiful welding effect
Coarse Weld
Uneven weld bead finish
Laser welding machine lessharmful
Just wear goggles
Traditional weldingmachine heat huge
Zahid joy –
It’s portable, welds quickly and well, and makes me more productive.
