MH-5068 6 Inch Air Orbital Sander
The MH-5068 6 inch air orbital sander is designed for users who prioritize surface coverage and sanding efficiency.
Compared with smaller pad sizes, the 6-inch configuration enables faster material removal on large, flat areas, making it suitable for workshop environments and high-productivity sanding tasks.
| Model | Pad Size | Orbit (Pendulum) | Speed | Vacuum Mode | Air Inlet (NPT) | Operating Pressure | Net Weight |
|---|---|---|---|---|---|---|---|

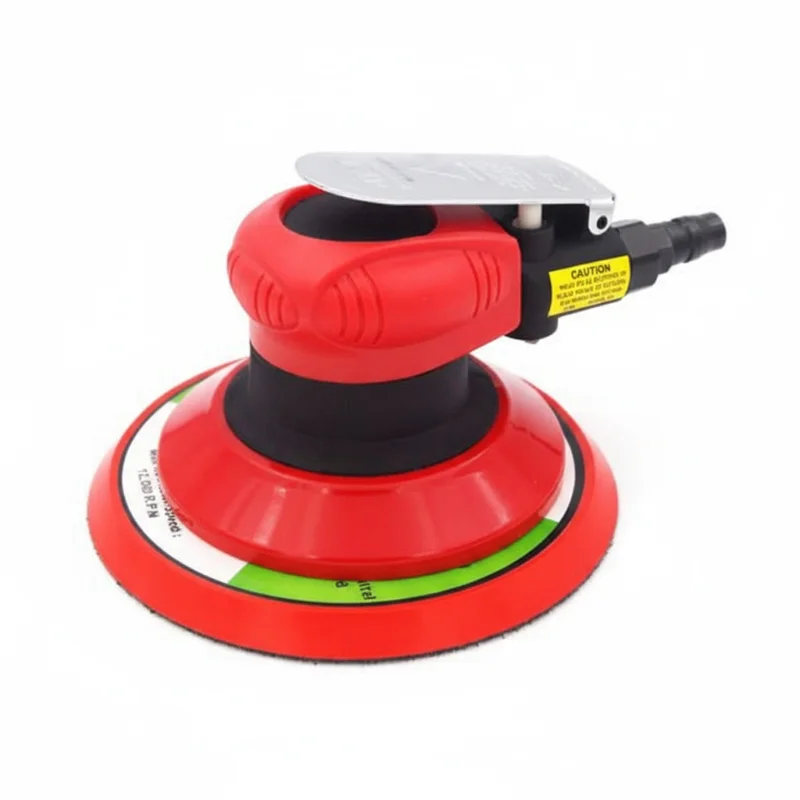

| MH-5068L | 6″ (150mm) | 0.24″ (6 mm) | 12000rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52 lbs (0.69 Kg) |

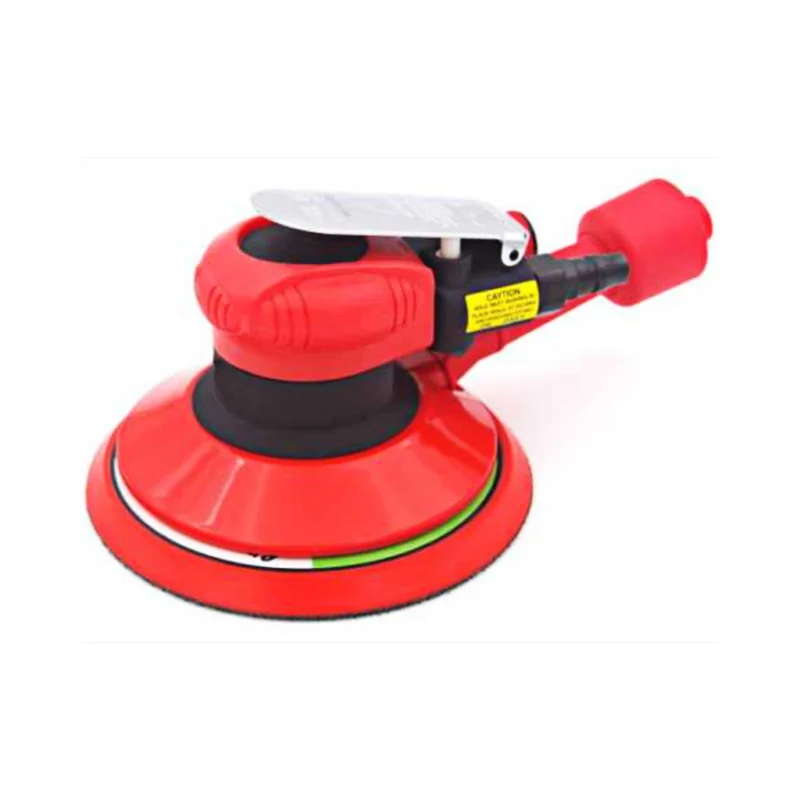

| MH-5068LZ | 6″ (150mm) | 0.24″ (6 mm) | 12000rpm | Self-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70 Kg) |

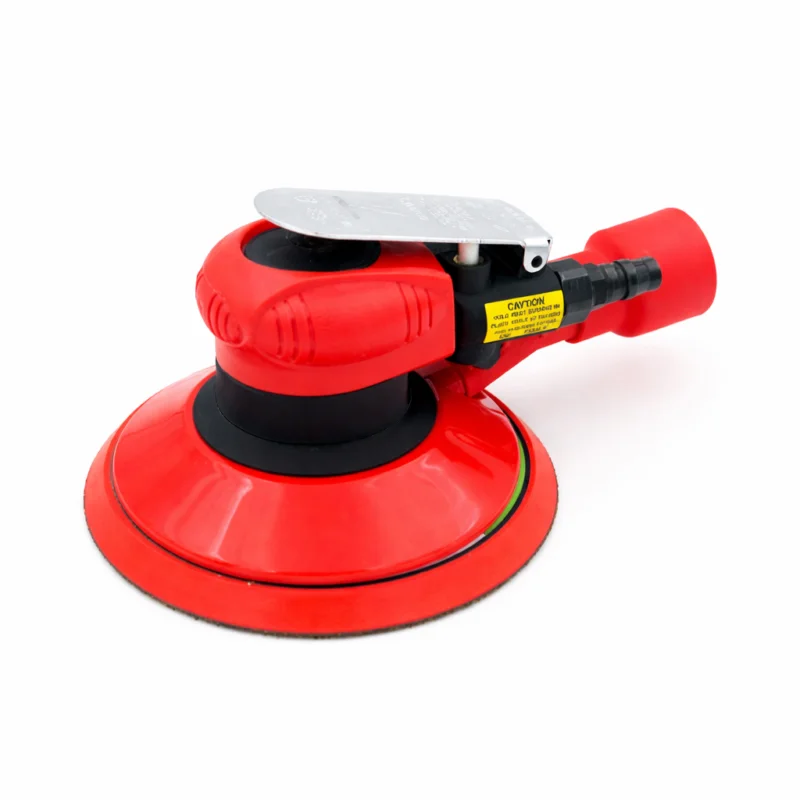

| MH-5068LV | 6″ (150mm) | 0.24″ (6 mm) | 12000rpm | Central Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70 Kg) |
Why Choose the 6 Inch Configuration
-
Larger Sanding Coverage
Covers more surface area per pass, reducing total working time on large panels. -
Higher Work Efficiency
Ideal for flat and wide surfaces where speed and consistency matter more than fine detail control. -
Stable Performance for Workshop Use
Designed for continuous sanding tasks commonly found in professional workshops.
Recommended Applications for 6 Inch Model
-
Large automotive body panels
-
Flat metal or composite surfaces
-
High-productivity workshop sanding
-
Pre-finishing before coating or painting
Vacuum & Non-Vacuum Options Explained
The MH-5068 series is available in both vacuum and non-vacuum configurations, with multiple vacuum types designed for different dust-control setups.
Vacuum Types Available
- Self-Vacuuming
Generates vacuum internally through the tool’s airflow design, enabling basic dust collection without the need for an external vacuum system. Suitable for mobile use and job sites where external extraction is not available. - Central Vacuum
Designed to connect to an external shop vacuum or central dust extraction system. This option provides more effective dust control and is commonly used in workshops or enclosed working environments.
Non-Vacuum Version
Provides a lighter and simpler configuration without dust extraction components. Commonly selected for open environments or applications where dust control is not required.
How to Choose
- Choose self-vacuuming for mobility and independent operation
- Choose central vacuum for maximum dust extraction and cleaner workspaces
- Choose non-vacuum when dust control is not a priority
This model is often selected by users looking for a 6 inch pneumatic orbital sander optimized for efficiency.
FAQ
Why choose a 6 inch air orbital sander instead of smaller sizes?
A 6-inch pad provides wider sanding coverage, allowing faster progress on large surfaces compared with smaller pad sizes.
Is the 6 inch model suitable for detail sanding?
This size is primarily designed for efficiency on larger areas. For fine detail work, smaller pad sizes are generally more suitable.
Can this model handle continuous workshop use?
Yes. The 6-inch configuration is commonly used in workshop environments where productivity is a priority.
Looking for other pad sizes?
Explore the MH-5068 Series air orbital sander →
