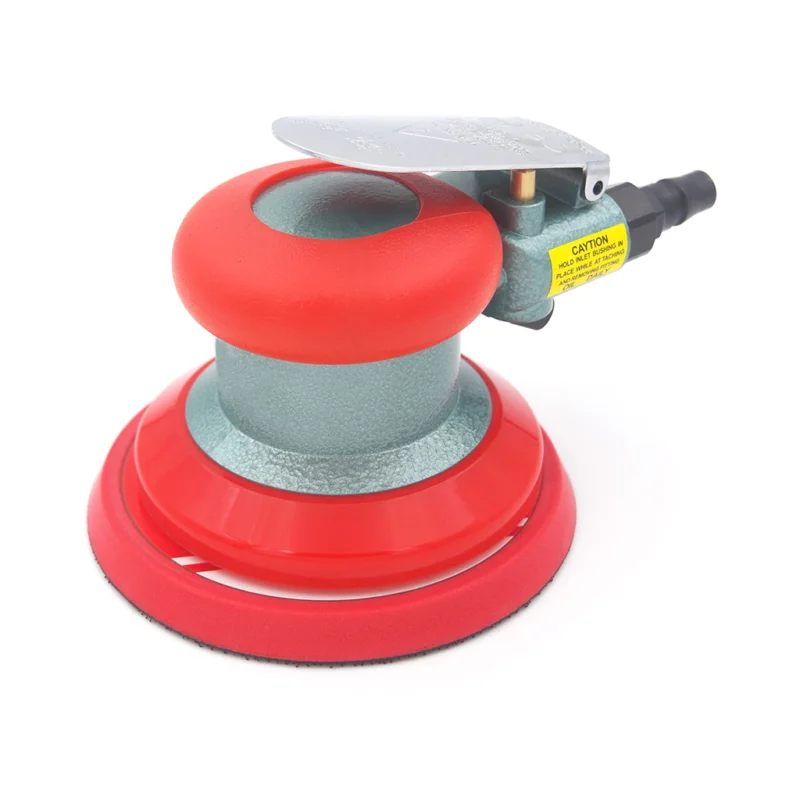

MH-5078 Pneumatic Orbital Sander
Engineered for precision and built to last, the MH-5078 pneumatic orbital sander is ideal for automotive refinishing, woodworking, and sheet-metal fabrication. A compact, ergonomic body pairs with high-speed performance to deliver a smooth, consistent finish — job after job.
Key Features
- High performance: Up to 12,000 RPM for fast, efficient material removal and fine surface finishing.
- Comfortable control: Balanced design helps minimize vibration and operator fatigue during extended use.
- Efficient air use: Consumes only 8 CFM while maintaining stable, reliable output.
- Durable build: Designed for the demands of daily professional environments.
Bring consistent results, cleaner finishes, and dependable productivity to your shop with the MH-5078.
Parameters
| Model | Pad Size | Orbit (Stroke) | Speed | Vacuum Mode | Air Inlet (NPT) | Operating Pressure | Net Weight |
|---|---|---|---|---|---|---|---|

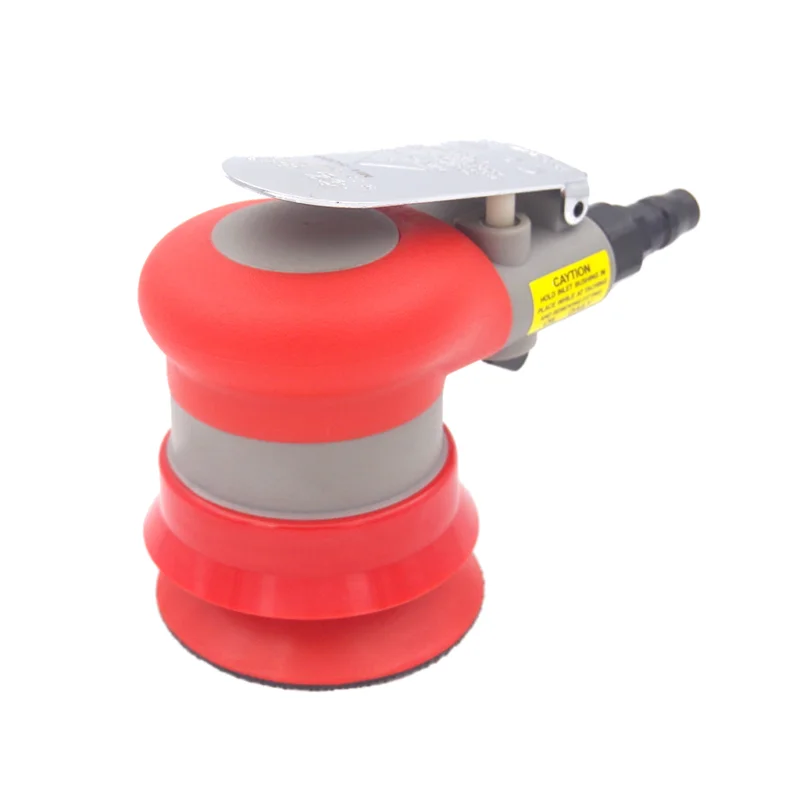

| MH-5078S | 3″ (75mm) | 0.12″ (3 mm) | 11,000 rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.32 lbs (0.60kg) |

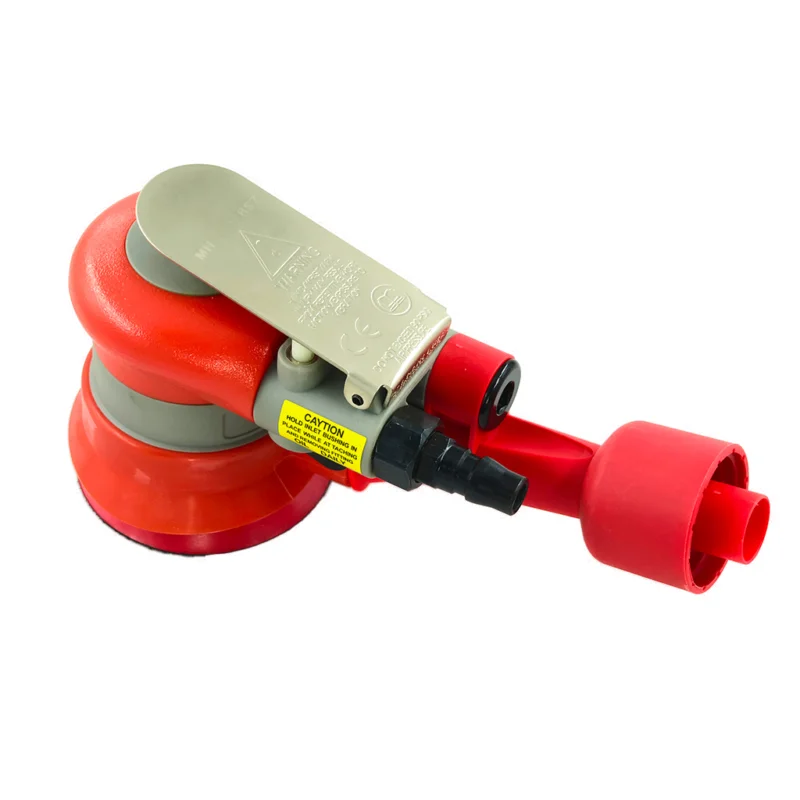

| MH-5078SZ | 3″ (75mm) | 0.12″ (3 mm) | 10,000 rpm | Self-Generated Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.76 lbs (0.80kg) |

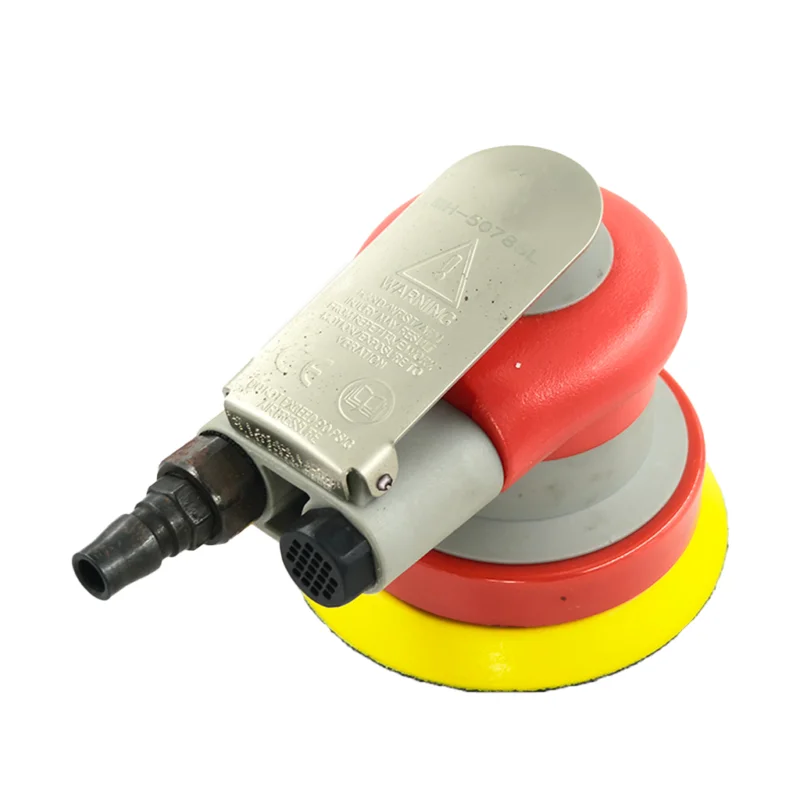

| MH-5078SL | 4″ (100mm) | 0.16″ (4 mm) | 12,000 rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52 lbs (0.69kg) |

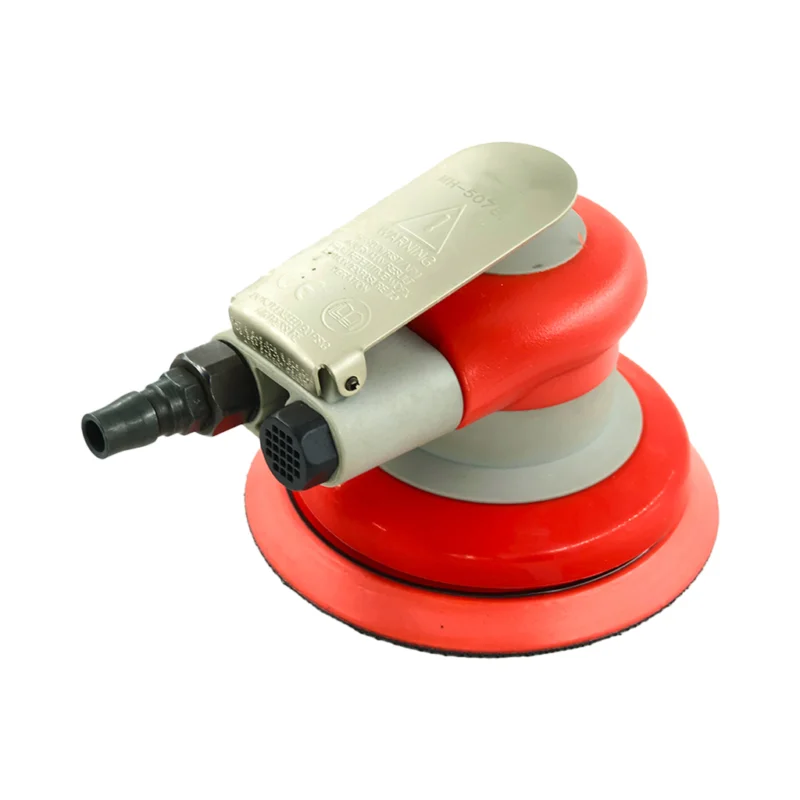

| MH-5078W | 5″ (125mm) | 0.20″ (5 mm) | 12,000 rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52 lbs (0.69kg) |

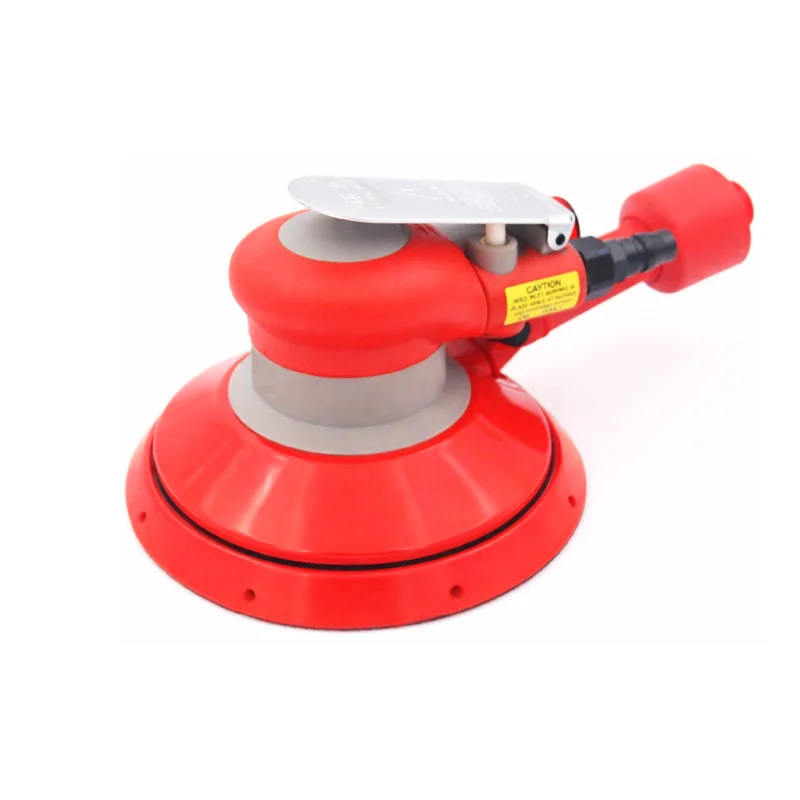

| MH-5078WZ | 5″ (125mm) | 0.20″ (5 mm) | 12,000 rpm | Self-Generated Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70kg) |

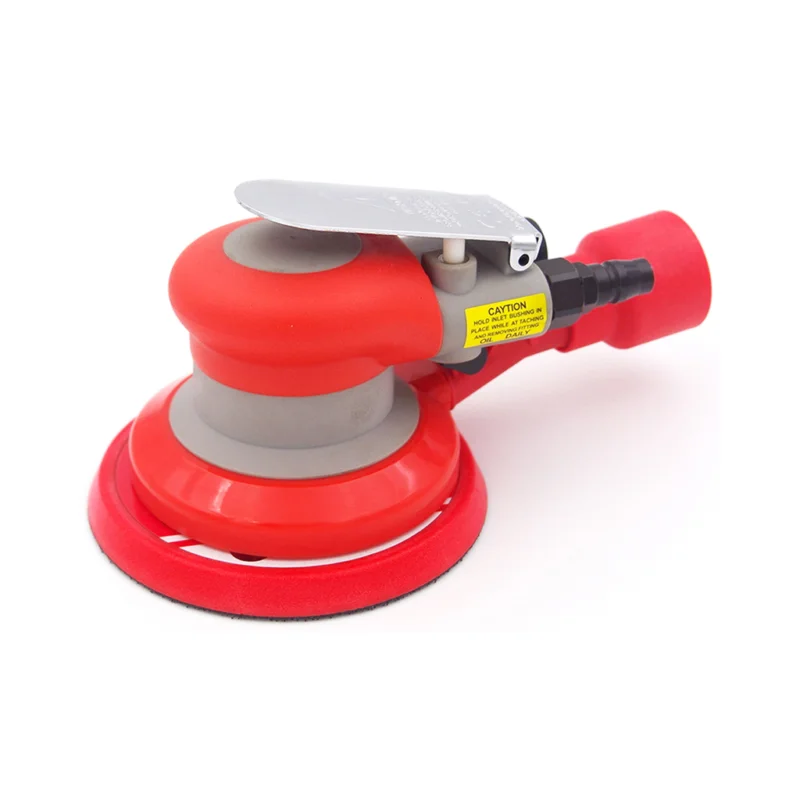

| MH-5078WV | 5″ (125mm) | 0.20″ (5 mm) | 12,000 rpm | Central Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70kg) |

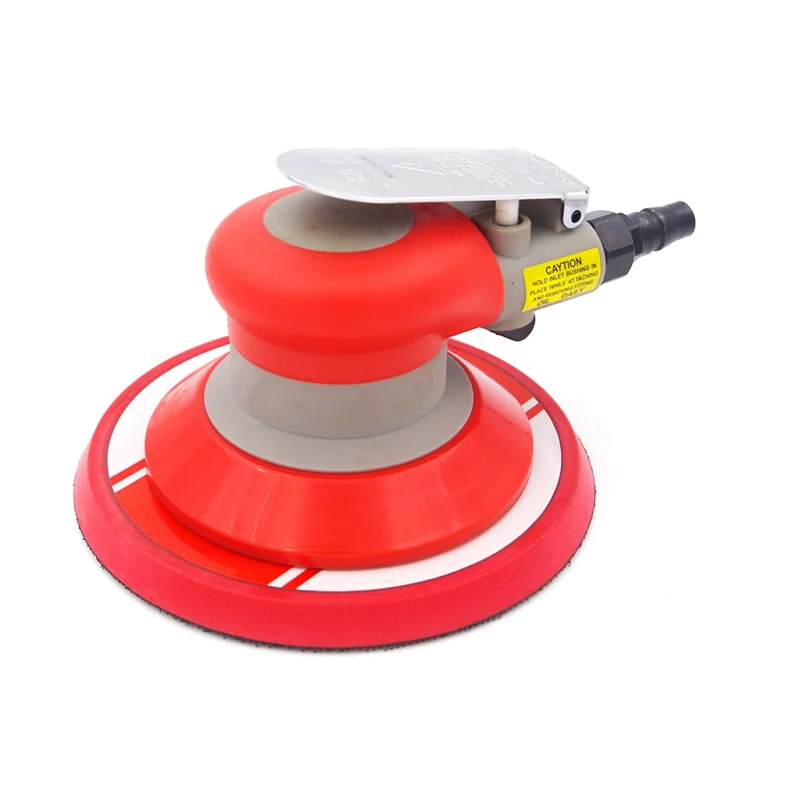

| MH-5078L | 6″ (150mm) | 0.24″ (6 mm) | 12,000 rpm | Non-Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.52 lbs (0.69kg) |

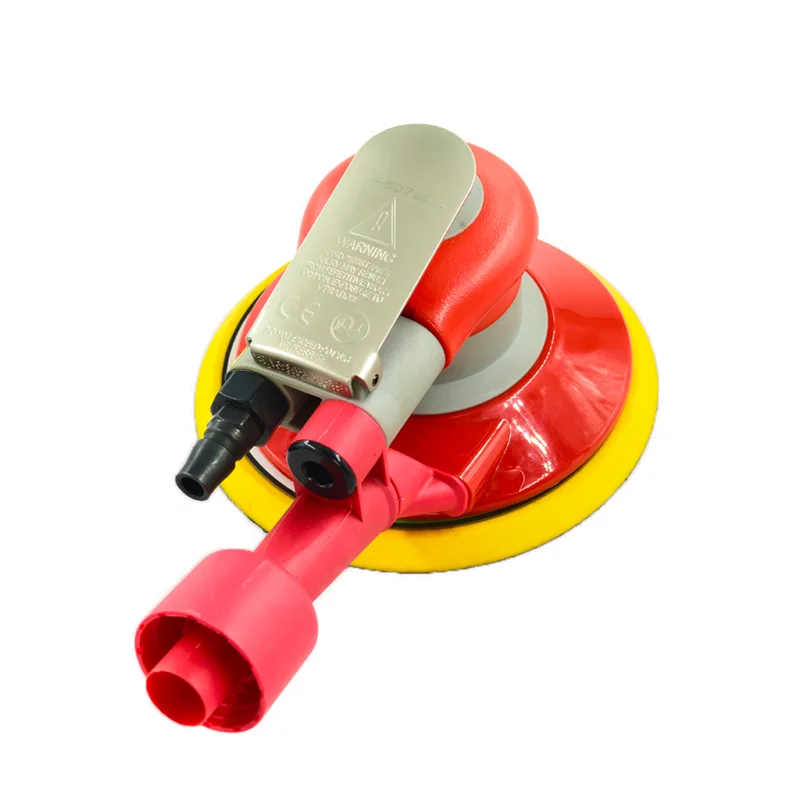

| MH-5078LZ | 6″ (150mm) | 0.24″ (6 mm) | 12,000 rpm | Self-Generated Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70kg) |
| MH-5078LV | 6″ (150mm) | 0.24″ (6 mm) | 12,000 rpm | Central Vacuum | 1/4″ | 90 PSI (6.2 bar) | 1.54 lbs (0.70kg) |
Supported Pad Sizes (MH-5078 Series)
The MH-5078 series is available in multiple pad sizes to match different sanding requirements:
-
3 inch – Ideal for detail work, edges, and confined sanding areas
-
4 inch – Suitable for controlled sanding with improved maneuverability
-
5 inch – A versatile size for general surface finishing and daily professional use
-
6 inch – Designed for wider surface coverage and higher material removal efficiency
This range allows users to select the appropriate size based on application needs without changing the tool platform.
Why These Specifications Matter
-
High RPM Output
Ensures fast material removal and uniform sanding patterns, especially suitable for primer leveling and fine surface preparation. -
5 Inch Pad Size
A versatile diameter that balances coverage and precision, commonly preferred in automotive refinishing and general workshop use. -
Optimized Air Consumption
Reduces compressor load while maintaining stable torque, improving efficiency during long sanding sessions. -
Lightweight & Balanced Design
Enhances operator control and minimizes fatigue, even during extended operation.
Recommended Applications
- Automotive body repair & refinishing
- Metal and composite surface preparation
- Wood sanding and fine finishing tasks
Who This Model Is Best For
- Buyers looking for a reliable 5 inch pneumatic orbital sander
- Workshops requiring stable RPM and low vibration control
- Users who prioritize durability over disposable tools
Recommended Applications
- Automotive body repair and refinishing
- Metal and composite surface preparation
- Wood sanding and fine finishing work
This model is commonly selected as an automotive air orbital sander for controlled surface finishing tasks.
Vacuum & Non-Vacuum Options Explained
The Air Orbital Sander MH-5078 series is available in both vacuum and non-vacuum configurations, with multiple vacuum types designed for different dust-control setups.
Vacuum Types Available
- Self-Vacuuming
Generates vacuum internally through the tool’s airflow design, enabling basic dust collection without the need for an external vacuum system. Suitable for mobile use and job sites where external extraction is not available. - Central Vacuum
Designed to connect to an external shop vacuum or central dust extraction system. This option provides more effective dust control and is commonly used in workshops or enclosed working environments.
Non-Vacuum Version
Provides a lighter and simpler configuration without dust extraction components. Commonly selected for open environments or applications where dust control is not required.
How to Choose
- Choose self-vacuuming for mobility and independent operation
- Choose central vacuum for maximum dust extraction and cleaner workspaces
- Choose non-vacuum when dust control is not a priority
Package Contents:
- One sanding machine.
- One wrench.
- Sanding machines with vacuum function are additionally equipped with one hose.
It features a reinforced aluminum and plastic body with a rubber coating for greater strength and more comfortable operation. It also has an easy-to-maintain system for quick sanding disc replacement.
Suitable for sanding flat surfaces. Keep the tool continuously lubricated and always use a pressure regulator and line lubricator to add pneumatic oil. Connectors are not included.
You can also check out another similar product, the MH-5068 pneumatic random orbital sander, which has similar functions but a slightly different appearance.
Explore high-efficiency, large-size 6-inch MH-5078 pneumatic sanders. Please click here.
To learn more about pneumatic sanders, ← click here to view more information.
FAQ
Is the MH-5078 suitable for automotive sanding?
Yes. Its stable speed and 5” pad size make it suitable for primer sanding, paint prep, and surface leveling.
What air pressure is required?
The MH-5078 operates within standard workshop air pressure ranges. Refer to the specification table for exact requirements.
Can it be used for long working sessions?
Yes. The balanced body design and controlled air consumption help reduce operator fatigue during extended use.
